4E-5542 Ring 4E5542 Boot Valve Piston Engine 105-2593 Cylinder Liner 1052593 Piston

Product Categories

Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department

Contact Now

Name: 4E5542 Ring 4E5542 Boot Valve Piston Engine 1052593 Cylinder Liner 1052593 Piston
Brand: Caterpillar
Price: 1 USD

Brand Name : Caterpillar

Model Number : 320B, 320C, 320C FM, 320C L, 320N, 321C, 322, 322B, 322C PISTON

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 320B, 320C, 320C FM, 320C L, 320N, 321C, 322, 322B, 322C PISTON

product name : 1052593 PISTON Caterpillar parts

cross code : CA1052593 105-2593 1052593

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

1052593 PISTON Caterpillar parts 320B, 320C, 320C FM, 320C L, 320N, 321C, 322, 322B, 322C PISTON

Product Description

CA1052593
105-2593
1052593

320B & 320B L Excavators 4XW00001-UP (MACHINE) POWERED BY 3066 Engine

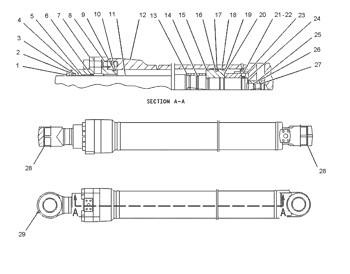

118-3953 CYLINDER & SEAL GP-STICK
S/N 4XW1-UP; 5GW1-UP
PART OF 118-3952 CYLINDER & LINES GP-STICK
AN ATTACHMENT

Information

Pos.	Part No	Qty	Parts name
1.	133-6904	[1]	SEAL-LIP TYPE
2.	121-1372	[1]	RING-BACKUP
3.	121-1371	[1]	SEAL-U-CUP
4.	4I-3626	[1]	SEAL-BUFFER
5.	096-5625	[1]	BUSHING
6.	094-1931	[1]	RING-RETAINING
7.	126-1941	[1]	HEAD
8.	4I-3628 M	[12]	BOLT-SOCKET HEAD (M18X2.5X80-MM)
9.	107-6258	[1]	RING
10.	095-1721	[1]	SEAL-O-RING
11.	119-5225	[1]	ROD AS
	119-5214	[1]	BUSHING
12.	126-1945	[1]	CYLINDER AS
	119-5214	[1]	BUSHING
13.	4I-8869	[1]	STOP
14.	126-1876	[1]	RING-SEAL
15.	105-2593	[1]	PISTON
16.	107-6262	[2]	RING
17.	123-3135	[1]	SEAL AS-PISTON
18.	126-1877	[2]	RING
19.	096-1571	[2]	RING
20.	096-5741 B	[1]	SHIM (0.3-MM THK)
21.	096-6210 M	[1]	SETSCREW-SOCKET (M14X2X14-MM)
22.	096-6211	[1]	BALL
23.	119-5211	[1]	LOCKNUT-SPECIAL
24.	096-4461	[1]	RING-RETAINING
25.	126-1879	[1]	RING-SEAL
26.	126-1878	[1]	STOP
27.	6I-6971	[2]	RING-RETAINING
28.	096-4411	[4]	SEAL-LIP TYPE
29.	3B-8489	[1]	FITTING-GREASE (1/8-27 PTF)

OME

4I8834 Piston As	Engine	4I-8834	Ring	10R7727 Piston 3066T/0.25Mm	Cylinder Liner	10R-7727	10R7727 Piston 3066T/0.25Mm Cylinder Liner 4I-8834 Engine 10R-7727 Ring 4I8834 Piston As
4P3953 Piston As	Engine	4P-3953	Ring	1290359 Piston Body W/O Pin	Cylinder Liner	129-359	4P3953 Piston As Engine 4P-3953 Ring 1290359 Piston Body W/O Pin Cylinder Liner 129-359
4T3272 Piston As	Engine	4T-3272	Ring	1T1426 Piston Lockup Clutch	Cylinder Liner	1T-1426	4T-3272 Engine 1T1426 Piston Lockup Clutch Cylinder Liner 4T3272 Piston As Ring 1T-1426
4W5819 Piston As	Engine	4W-5819	Ring	1W8900 Ring Top Piston 3400	Cylinder Liner	1W-8900	1W-8900 Ring 1W8900 Ring Top Piston 3400 Engine 4W-5819 Cylinder Liner 4W5819 Piston As
5I8632 Piston As	Engine	5I-8632	Ring	1W9460 Ring Top Piston 3400	Cylinder Liner	1W-9460	1W9460 Ring Top Piston 3400 Cylinder Liner 5I-8632 Engine 1W-9460 Ring 5I8632 Piston As
